IEPE Accelerometers

IEPE Accelerometers

IEPE accelerometers provide stable, reliable vibration measurements with a cost-effective design and fast delivery. Featuring built-in signal conditioning and strong shock tolerance, they are ideal for general-purpose vibration monitoring across industrial machinery, structural testing, and a wide range of dynamic measurement applications.

Inquire

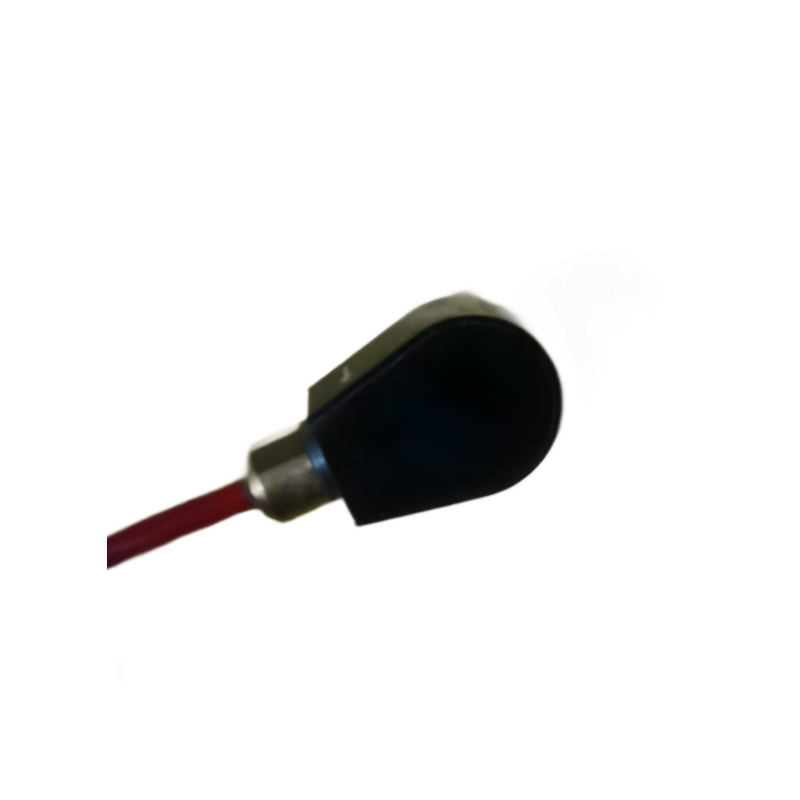

Accelerometer IEPE
Type Number DA3007B-100
Sensitivity (±10 %) 100 mV/g
Acceleration Range ± 500 g pk
Frequency Range (± 10 %) 2.5 - 8,000 Hz
Frequency Range (± 2dB) 1 - 10,000 Hz
Resonance Frequency ≥ 48 kHz
Electrical Noise Floor, Max 0.001 g rms
Linearity ≤ 1 %
Transverse Sensitivity ≤ 5 %
Maximum Shock ± 10,000 g pk
Operating Temperature -55 - +125 °C (-67°F - +257°F)
Supply Voltage +18 - +30 VDC
Current Range 2 - 10 mA
Output Bias Voltage +8 - +12 VDC
Output polarity +
Sensing Element Material Ceramics
Shell material Stainless steel
Seal Hermetic
Dimensions 9.2x4.6x7.3 mm
Weight, Max 1.5 g
Connector 10-32 Coaxial Connector
Mounting Method Stud/Adhesive
IEPE Accelerometers
3005A 3005M 3010
Type Number DA3005A-10 DA3005A-50 DA3005A-100 DA3005M-10 DA3005M-50 DA3005M-100 DA3010-10 DA3010-50 DA3010-100
Description Wide bandwidth Wide bandwidth Wide bandwidth Lateral Line, Integrated cable output Lateral Line, Integrated cable output Lateral Line, Integrated cable output Side Exit Side Exit Side Exit
Sensitivity 10 mV/g 50 mV/g 100 mV/g 10 mV/g 50 mV/g 100 mV/g 10 mV/g 50 mV/g 100 mV/g
Weight 12 g 12 g 12 g 12 g 12 g 12 g 25 g 25 g 25 g
Sinusoidal limit ±500 g ±100 g ±50 g ±500 g ±100 g ±50 g ±500 g ±100 g ±50
Shock limit 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g
Frequency Response (±10%) 0.5 - 15000 Hz 0.5 - 15000 Hz 0.5 - 15000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz
Temperature Range -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃
Electrical Connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector BNC Coaxial connector BNC Coaxial connector BNC Coaxial connector 3-pin connector 3-pin connector 3-pin connector
Signal/ground isolation Yes Yes Yes Yes Yes Yes Yes Yes Yes
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes Yes Yes
Mounting Method Screw Screw Screw Screw Screw Screw Screw Screw Screw
Dimension 22.4x15.2x9.8 mm 22.4x15.2x9.8 mm 22.4x15.2x9.8 mm 33x16x23.3 mm 33x16x23.3 mm 33x16x23.3 mm 26.7x21x13.2 mm 26.7x21x13.2 mm 26.7x21x13.2 mm
IEPE Accelerometer
3014 3015
Type Number DA3014-5 DA3014-10 DA3014-20 DA3014-50 DA3014-100 DA3015-5 DA3015-10 DA3015-20 DA3015-50 DA3015-100
Description Rugged, Lightweight, Side exit Rugged, Lightweight, Side exit Rugged, Lightweight, Side exit Rugged, Lightweight, Side exit Rugged, Lightweight, Side exit Rugged, Lightweight, Top exit Rugged, Lightweight, Top exit Rugged, Lightweight, Top exit Rugged, Lightweight, Top exit Rugged, Lightweight, Top exit
Sensitivity 5 mV/g 10 mV/g 20 mV/g 50 mV/g 100 mV/g 5 mV/g 10 mV/g 20 mV/g 50 mV/g 100 mV/g
Weight 8 g 8 g 8 g 8 g 8 g 7 g 7 g 7 g 7 g 7 g
Sinusoidal limit ±1000 g ±500 g ±250 g ±100 g ±50 g ±1000 g ±500 g ±250 g ±100 g ±50
Shock limit 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g
Frequency Response (±10%) 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz 0.5 - 10000 Hz
Temperature Range -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃
Electrical Connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector
Signal/ground isolation No No No No No No No No No No
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Mounting Method Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive Stud/Adhesive
Dimension 18x11.1x14.1 mm 18x11.1x14.1 mm 18x11.1x14.1 mm 18x11.1x14.1 mm 18x11.1x14.1 mm 11.1x11.1x19 mm 11.1x11.1x19 mm 11.1x11.1x19 mm 11.1x11.1x19 mm 11.1x11.1x19 mm
IEPE Accelerometer
3016 3020 3021A
Type Number DA3016-50 DA3016-100 DA3016-500 DA3020-100 DA3020-500 DA3020-1000 DA3021A-20 DA3021A-50 DA3021A-100
Description Rugged, High sensitivity, Top exit Rugged, High sensitivity, Top exit Rugged, High sensitivity, Top exit Rugged, High sensitivity, Top exit Rugged, High sensitivity, Top exit Rugged, High sensitivity, Top exit Lightweight, Miniaturization Lightweight, Miniaturization Lightweight, Miniaturization
Sensitivity 50 mV/g 100 mV/g 500 mV/g 100 mV/g 500 mV/g 1000 mV/g 20 mV/g 50 mV/g 100 mV/g
Weight 19 g 19 g 19 g 23 g 23 g 23 g 8 g 8 g 8 g
Sinusoidal limit ±100 g ±50 g ±10 g ±50 g ±10 g ±5 g ±250 g ±100 g ±50 g
Shock limit 5000 g 5000 g 5000 g 5000 g 5000 g 5000 g 4000 g 4000 g 4000 g
Frequency Response (±10%) 1 - 10000 Hz 1 - 9000 Hz 1 - 6000 Hz 1 - 8000 Hz 1 - 5000 Hz 1 - 4000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz
Temperature Range -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃
Electrical Connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector
Signal/ground isolation No No No No No No No No No
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes Yes Yes
Mounting Method Stud Stud Stud Stud Stud Stud Stud Stud Stud
Dimension 21.7x15x17.5 mm 21.7x15x17.5 mm 21.7x15x17.5 mm 22.5x16x20.6 mm 22.5x16x20.6 mm 22.5x16x20.6 mm 16.9x9.8x12.6 mm 16.9x9.8x12.6 mm 16.9x9.8x12.6 mm
General Purpose Piezoelectric Accelerometer
3021B 3022 3022A
Type Number DA3021B-20 DA3021B-50 DA3021B-100 DA3022-20 DA3022-50 DA3022-100 DA3022A-20 DA3022A-50 DA3022A-100
Description Light weight, Miniaturization Light weight, Miniaturization Lightweight, Miniaturization Lateral Line, Integrated cable output Lateral Line, Integrated cable output Lateral Line, Integrated cable output Lateral Line, Integrated cable output Lateral Line, Integrated cable output Lateral Line, Integrated cable output
Sensitivity 20 mV/g 50 mV/g 100 mV/g 20 mV/g 50 mV/g 100 mV/g 20 mV/g 50 mV/g 100 mV/g
Weight 8 g 8 g 8 g 6 g 6 g 6 g 6 g 6 g 6 g
Sinusoidal limit ±250 g ±100 g ±50 g ±250 g ±100 g ±50 g ±250 g ±100 g ±50 g
Shock limit 4000 g 4000 g 4000 g 3000 g 3000 g 3000 g 3000 g 3000 g 3000 g
Frequency Response (±10%) 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz
Temperature Range -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃
Electrical Connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector
Signal/ground isolation Yes Yes Yes No No No No No No
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes Yes Yes
Mounting Method isolated mounting studs isolated mounting studs isolated mounting studs Stud/Adhesive Stud/Adhesive Stud/Adhesive Integrated Stud Integrated Stud Integrated Stud
Dimension 16.9x9.8x12.6 mm 16.9x9.8x12.6 mm 16.9x9.8x12.6 mm 27.7x9.8x8.8 mm 27.7x9.8x8.8 mm 27.7x9.8x8.8 mm 27.7x9.8x8.8 mm 27.7x9.8x9.8 mm 27.7x9.8x8.8 mm
IEPE Accelerometer
3022B 3023 3023A 3051
Type Number DA3022B-20 DA3022B-50 DA3022B-100 DA3023-20 DA3023-50 DA3023-100 DA3023A-20 DA3023A-50 DA3023A-100 DA3051-10 DA3051-100
Sensitivity 20 mV/g 50 mV/g 100 mV/g 20 mV/g 50 mV/g 100 mV/g 20 mV/g 50 mV/g 100 mV/g 10 mV/g 100 mV/g
Weight 6 g 6 g 6 g 8 g 8 g 8 g 8 g 8 g 8 g 25 g 25 g
Sinusoidal limit ±250 g ±100 g ±50 g ±250 g ±100 g ±50 g ±250 g ±100 g ±50 g ±500 g ±50 g
Shock limit 3000 g 3000 g 3000 g 3000 g 3000 g 3000 g 3000 g 3000 g 3000 g 5000 g 5000 g
Frequency Response (±10%) 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 8000 Hz 0.5 - 9000 Hz 0.5 - 9000 Hz 0.5 - 9000 Hz 0.5 - 9000 Hz 0.5 - 9000 Hz 0.5 - 9000 Hz 1 - 10000 Hz 1 - 10000 Hz
Temperature Range -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 125 ℃ -55 ~ 130 ℃ -55 ~ 130 ℃
Electrical Connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector BNC/10-32 Coaxial connector 3-pin connector 3-pin connector
Signal/ground isolation Yes Yes Yes No No No Yes Yes Yes Yes Yes
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Mounting Method isolated mounting stud isolated mounting stud isolated mounting stud Stud/Adhesive Stud/Adhesive Stud/Adhesive isolated mounting stud isolated mounting stud isolated mounting stud Screw Screw
Dimension 27.7x9.8x8.8 mm 27.7x9.8x8.8 mm 27.7x9.8x8.8 mm 10x10x30.7 mm 10x10x30.7 mm 10x10x30.7 mm 10x10x28.2 mm 10x10x28.2 mm 10x10x28.2 mm 30x4.2x13.7 mm 30x4.2x13.7 mm
IEPE Accelerometer
7102 7103 7112
Type Number DA7102-10 DA7102-100 DA7103-10 DA7103-100 DA7112-50 DA7112-100 DA7112-500
Description Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit Rugged, Light weight, Side Exit
Sensitivity 10 mV/g 100 mV/g 10 mV/g 100 mV/g 50 mV/g 100 mV/g 500 mV/g
Weight 16 g 16 g 21 g 21 g 36 g 36 g 36 g
Sinusoidal limit ±500 g ±50 g ±500 g ±50 g ±100 g ±50 g ±10 g
Shock limit 2000 g 2000 g 2000 g 2000 g 2000 g 2000 g 2000 g
Frequency Response (±10%) 1 - 8000 Hz 1 - 8000 Hz 1 - 8000 Hz 1 - 8000 Hz 1 - 9000 Hz 1 - 9000 Hz 1 - 9000 Hz
Temperature Range -55 ~ 120 ℃ -55 ~ 120 ℃ -50 ~ 120 ℃ -50 ~ 120 ℃ -40 ~ 100 ℃ -40 ~ 100 ℃ -40 ~ 100 ℃
Electrical Connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector 10-32 Coaxial connector
Signal/ground isolation No No No No No No No
Hermetic Seal Yes Yes Yes Yes Yes Yes Yes
Mounting Method Stud Stud Stud Stud Stud Stud Stud
Dimension 11x11x22.5 mm 11x11x22.5 mm 18x12x20 mm 18x12x20 mm 23.3x16.8x22.5 mm 23.3x16.8x22.5 mm 23.3x16.8x22.5 mm
