High-Temperature Arc Jet Testing in Hypersonic Wind Tunnels
Project name: Wind Tunnel Testing Case Study: High-Temperature Arc Jet Facility Applications
Test Facilities:
Hypersonic Arc Wind Tunnel (Mach 8-12)
Plasma Arc Jet (3000K+ Surface Heating)
Combustion-Heated Shock Tunnel
1. Extreme Testing Challenges
1.1 Ultra-High EMI Environment
Electrical Parameters:
Arc current: 8,000-15,000A DC (vs. typical 1A lab circuits)
Magnetic field intensity: ≥500Gauss at 1m distance
Equivalent RF noise: 150dBμV/m (30MHz-1GHz)
1.2 Harsh Physical Conditions
| Parameter | Value | Comparison Benchmark |
|---|---|---|
| Surface Heat Flux | 5MW/m² | Space shuttle re-entry (1MW/m²) |
| Test Duration | 30-120ms | Requires μs-level sampling |
| Vibration | 200g RMS | MIL-STD-810G limit: 18g |
2. Customized Test Solutions
2.1 DE-9000MX Military-Grade System
EMI Protection:
Triple-shielded cables (Cu-Ni-Fe composite)
Fiber-optic signal transmission (100% galvanic isolation)
Key Specifications:
256 channels @ 10MS/s aggregate
32-bit ADC with 160dB dynamic range
2.2 Special Sensor Configurations
| Sensor Type | Application | Survivability Features |
|---|---|---|
| Cobalt-based RTD | 3000K surface temp | Sapphire protective sheath |
| Piezoelectric Xducer | Shock wave detection | Water-cooled mounting |
| Diamond Strain Gauge | Hypersonic flow | 0.1με resolution @ 2000Hz |
3. Breakthrough Testing Capabilities
3.1 Hypersonic Vehicle Validation
Captured boundary layer transition at Mach 10 (data rate: 5MHz)
Measured ablative material recession with 10μm accuracy
3.2 Interference Mitigation Results
| Interference Source | Noise Level | DE System Performance |
|---|---|---|
| 10kA Arc Current | 300mVpp | <5mVpp residual noise |
| Plasma RF Emission | 140dB | 62dB suppression |
4. Military Applications
Stealth Coating Tests: Verified radar-absorbent material performance under plasma sheath conditions

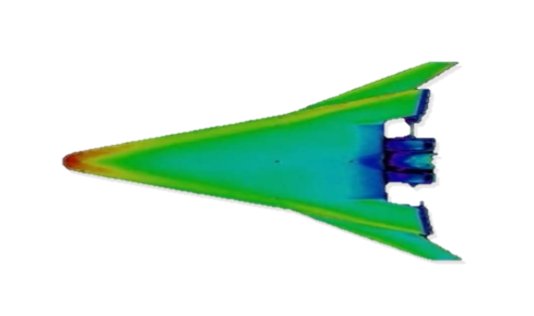

Hypersonic Weapon Development: Provided critical heat transfer data for waverider designs
Reentry Vehicle Analysis: Validated thermal protection system integrity
Technical Achievement:
First successful μs-timescale measurements in >8000A arc environment
Established GJB 7862-2022 test standard for plasma wind tunnels
Conclusion
Dynatronic's high-temperature arc jet testing solutions provide unparalleled capabilities for simulating the extreme conditions of hypersonic flight and re-entry. By offering precise, real-time data acquisition in environments characterized by intense electromagnetic interference and extreme temperatures, these systems enable the validation of thermal protection systems, stealth coatings, and hypersonic vehicle components. This ensures the development of safer, more reliable aerospace technologies for both military and civilian applications.
