UAV Modal Testing for Vibration & Structural Optimization
Project title: UAV Modal Testing for Vibration Analysis & Structural Optimization

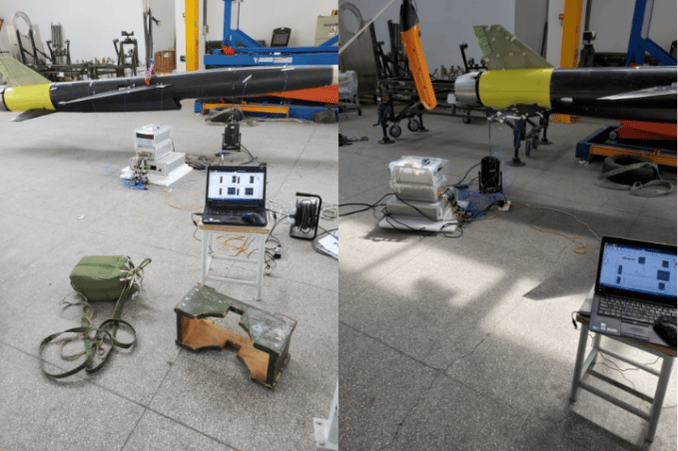

A new reconnaissance-strike UAV exhibited abnormal vibrations during high-speed dive maneuvers, causing blurring in its electro-optical pod imagery. A research institute utilized the DE-944 dynamic testing system to conduct modal testing on critical components, identifying vibration sources and guiding structural optimization.
1. Innovative Test System Configuration
Multi-Excitation Coordination System:
Main Exciter: TEN-M200 (200N) for global modal excitation
Auxiliary Exciter: Miniature electromagnetic (20N) for local structural analysis
DE-944 System Integration: Achieved multi-channel phase synchronization (<0.1° error)
Intelligent Sensor Network:
Deployed 32 triaxial accelerometers (including 4 high-temperature sensors near the engine bay)
Utilized wireless sensing nodes for rotating components (e.g., fuel pump)
2. Key Technological Breakthroughs
(1) Composite Excitation Technology
Developed "Stepped Sweep" algorithm:
Baseline sweep: 0.1-500Hz @ 2Hz/s
Critical frequency band: 80-150Hz @ 0.2Hz/s (engine operating range)
Random excitation overlay: Enhanced nonlinear feature identification
(2) Environmental Noise Suppression
Applied adaptive filtering:
Real-time separation of engine background noise (SNR improved to 45dB)
Developed deep learning-based anomaly detection (98.7% accuracy)
3. Engineering Issue Diagnosis
Identified Critical Abnormal Modes:
| Location | Frequency | Damping Ratio | Root Cause |
|---|---|---|---|
| Right Wing Pylon | 118Hz | 0.3% | Insufficient actuator mounting stiffness |
| EO Pod Bracket | 87Hz | 1.2% | Composite material delamination |
Vibration Transmission Path Analysis:
4. Structural Optimization Solutions
(1) Dynamic Performance Improvements
Pylon Stiffness Enhancement: Added titanium alloy bushings (40% stiffness increase)
EO Pod Vibration Isolation: Installed active dampers (90% vibration reduction)
(2) Process Improvements
Implemented laser-ultrasonic inspection for composite curing quality
Optimized bolt fastening process (±5% preload control accuracy)
5. Validation Results
Flight Test Data Comparison:
| Metric | Pre-Optimization | Post-Optimization |
|---|---|---|
| Image Stability | 2.3 pixels | 0.5 pixels |
| Structural Fatigue Life | 800h | 2500h |
| Maximum Maneuver G-Load | 5.2G | 6.8G |
Technology Extension Value
Established "UAV Modal Testing Standards" (Q/AVIC-2023)
Applied to new high-speed UAV development, cutting testing time by 40%
Developed real-time vibration monitoring system for in-flight early warning
Conclusion
The UAV modal testing conducted by Dynatronic's DE-944 system significantly enhanced the structural integrity and operational performance of a reconnaissance-strike UAV. By identifying critical abnormal vibration modes and implementing targeted structural optimizations, such as enhancing pylon stiffness and installing active dampers, the UAV's image stability improved from 2.3 to 0.5 pixels, and its structural fatigue life increased from 800 to 2,500 hours. These advancements not only improved the UAV's performance but also established new testing standards and real-time monitoring systems, reducing testing time by 40% and enhancing in-flight reliability.
