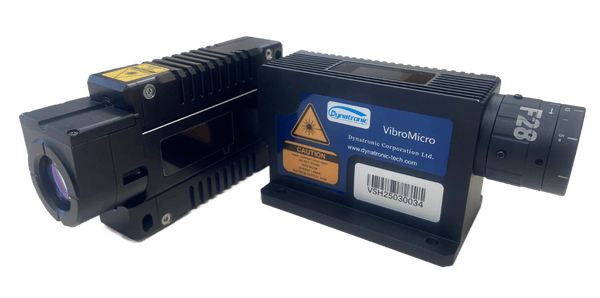

Compact VibroMicro VM-S-100 Laser Vibrometer

VibroMicro is a compact, high-performance laser vibrometer integrating a built-in data processing unit and an operational unit, capable of delivering both digital and analog outputs. With a sampling frequency of up to 50 Msps, it ensures precise measurement of vibration signals across a broad frequency range, from DC to 25 MHz. The system features a versatile lens assembly, allowing users to switch lenses as needed. All lenses support manual focus, Mars series supports auto focus, providing flexibility for diverse measurement scenarios.

Inquire

Study acoustics and dynamics with laser precision in field and lab
Easy to use, with display screen and auto focus (Mars series)
On-board intelligent chip, monitoring and quick analysis of measurement data
Ethernet/Wireless measurement and remote control from everywhere within the advanced connectivity concept
Micro, versatile and outdoor-proof (IP64)
Measure from a safe distance up to 100 m, from DC up to 25MHz
Extended velocity range up to 30 m/s
Displacement and acceleration available as additional output signals
Analog and digital signal output
Optional mobile power supply
Optical instruments with a full lens


    Optical Specifications

        Name
        Detail

    Optical Specifications

        Laser Type

          Measurement laser: invisible (IR), wavelength 1310 nm, effective output power < 5 mW

          Targeting laser: visible (red), wavelength 655 nm, effective output power adjustable

        Laser Class
        Class I, < adjustable output power

        Laser Wavelength
        655 nm, visible red laser beam

        Focus
        Manual focus (VibroMicro Sputnik/Apollo/Shenzhou)

Automatic focus(VibroMicro Mars)

        Minimum Stand-off Distance
        25 mm

        Maximum Stand-off Distance
        ca. 100 m, depending on different lens

        Displacement Resolution
        0.01 nm (VibroMicro Sputnik/Apollo/Shenzhou)

0.001nm(VibroMicro Mars)

        Frequency Bandwidth
        DC–2.5 MHz (VibroMicro Sputnik/Apollo/Shenzhou)

DC-25MHz(VibroMicro Mars)

        Optical Interference
        >60,000 lux

        Noise Density
        Min 0.3 pm/√Hz

        Displacement Repeatability (>1 kHz)
        <0.1 nm (VibroMicro Sputnik/Apollo/Shenzhou)

<0.01nm(VibroMicro Mars)

        Velocity Range
        Max 30 m/s


    General Specifications

        Name
        Detail

    General Specifications

        Model
        VibroMicro VM-S-100

        Weight
        ca. 350 g(VibroMicro Sputnik/Apollo/Shenzhou)

ca. 285g(VibroMicro Mars)

ca. 590g(VibroMicro Mars with radiator)

        Protection Class
        IP64

        Dimensions [W x H x L]
        See drawing

        Operating Temperature
        -20 °C … +50 °C (-68 °F … +122 °F)

        Sheathing Material
        Aluminium alloy

        Power Supply and Power Consumption
        12 VDC, 4 W

        Digital Interface
        Ethernet 100BaseT (VibroMicro Sputnik/Apollo/Shenzhou)

Ethernet 1000BaseT(VibroMicro Mars)

        Analog Output Signal Interface
        SMA

        Analog Output Sensitivity Range
        0.0005~4444 mV/mm

        Analog Sensitivity Level
        24 level, automatic

        Trigger Signal
        rising edge

        Network Synchronization Signal
        Square wave (1Hz)

        Trigger I/O
        Input & Output

        Synchronization Accuracy
        0.2 ms

        Display
        Color screen


    Metrological Specifications
    Metrological Specifications

        Package
        Max. velocity (m/s)
        Max. distance (m)1
        Spectral floor noise @10cm
        Depth-of-field (10%)
        Laser source
        Lens4



        Sputnik2
        1.5
        ~40
        1pm/√Hz
        10
        High power, low noise
        Optional


        Apollo2
        4.5
        ~100
        1pm/√Hz
        10
        High power, low noise
        Optional


        Shenzhou3
        20
        ~100
        0.1pm/√Hz
        20
        High power, low noise
        Optional


        Mars3
        30
        ~10
        0.02pm/√Hz
        20
        High power, low noise
        Optional



1 Depending on model with different lens
2 VibroMicro Sputnik, Apollo could be remotely programmed and the configuration updated
3 VibroMicro Shenzhou, Mars should be confirmed in factory, no upgrades on customer side
4 Optional, reference to lens information table


    Working distance and laser spot size (Lens DR-L-F28)

        Working distance and laser spot size (Lens-DR-L-F28)

        Stand-off distance
        [mm]
        12mm @min
        24mm @max

        Laser spot size
        [μm]
        70
        90

        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off


    Working distance and laser spot size (Lens DR-L-F2815)

        Working distance and laser spot size (Lens-DR-L-F2815)

        Stand-off distance
        [mm]
        40mm @min
        60mm @max

        Laser spot size
        [μm]
        90
        100

        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off


    Working distance and laser spot size (Lens DR-L-F15)

        Working distance and laser spot size (Lens-DR-L-F15)

        Stand-off distance
        [mm]
        150mm @min
        300mm @max

        Laser spot size
        [μm]
        60
        70

        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off


    Working distance and laser spot size (Lens DR-L-F28)

        Working distance and laser spot size (Lens-DR-L-F28)



        Stand-off distance
        [mm]
        300mm @min
        800
        1000
        1500
        2000


        Laser spot size
        [μm]
        60
        160
        190
        280
        380


        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off





    Working distance and laser spot size (Lens DR-L-C40)

        Working distance and laser spot size (Lens DR-L-C40)



        Stand-off distance
        [mm]
        800
        1,000
        1,500
        2,000
        3,000


        Laser spot size
        [μm]
        110
        130
        200
        290
        400


        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off
        ±10% @ Stand-off





    Working distance and laser spot size (Lens DR-L-W25AF)

        Working distance and laser spot size (Lens DR-L-W25AF)

        Stand-off distance
        [mm]
        2000mm @min
        10000mm @max

        Laser spot size
        [μm]
        200
        1000

        Laser depth-of-field
        [mm]
        ±10% @ Stand-off
        ±10% @ Stand-off

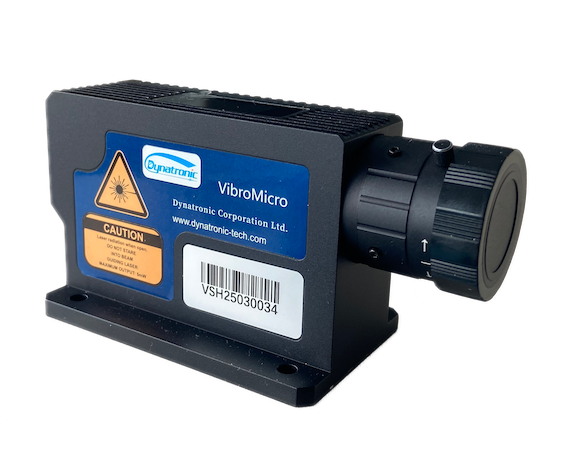

VibroMicro Sputnik, VibroMicro Apollo, VibroMicro Shenzhou

(All dimensions in mm if not marked otherwise)

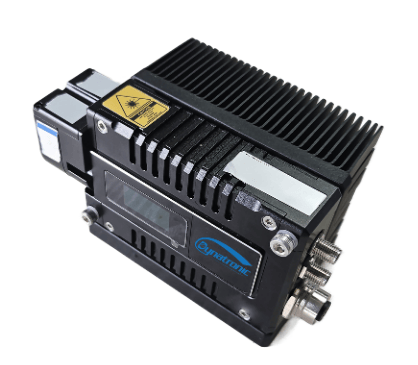

VibroMicro Mars

(All dimensions in mm if not marked otherwise)

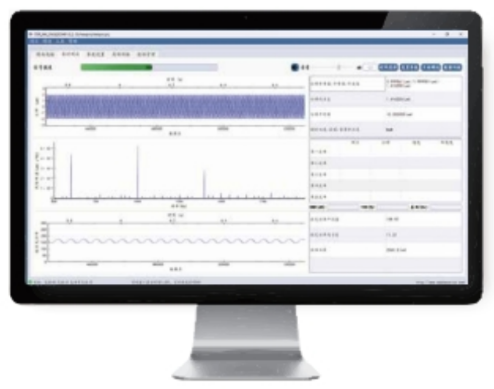

VibroSoft: Data acquisition and analysis software

VibroSoft is specially developed for VibroMicro laser Doppler vibrometer products. The software user interface has two measurement modes: universal frequency measurement and high frequency vibration measurement. The software supports real-time original time domain signal display, which can display vibration displacement, vibration speed and vibration acceleration signals. At the same time, the software can perform real-time FFT analysis and online sound playback functions, and can also set high-low pass filtering and window functions for the original signal.

In addition, the software also has the function of on-line short-time Fourier analysis, which can monitor the unsteady transient vibration in real time. VibroSoft supports data post-processing analysis, can provide SDK software development kit, customers can according to their own needs for secondary development, currently can support C++, Labview, C#, Python and so on.

Lens specifications
Model¹	Optical aperture (mm)	Focus adjustable distance (mm)	Optimum working distance (m)	Depth-of-field (%)	Description
Lens Specifications
DR-L-DF28	20	0.025–0.04	0.025–0.04	±0.5	Close distance use, diffuse reflector receiving angle is ±60°
DR-L-F2815	20	0.04–0.06	0.04–0.06	±2	Close distance use, diffuse reflector receiving angle is ±30°
DR-L-F15	8.5±0.02	0.1~1	0.15–0.3	±20	Medium distance use, diffuse reflector receiving angle is ±5°
DR-L-F28	20	0.3~40	0.3~40	±20	Medium and long-distance use, diffuse reflector receiving angle is ±10°
DR-L-C40	22	5~100	5~100	±20	Long distance use, diffuse reflector receiving angle is ±10°

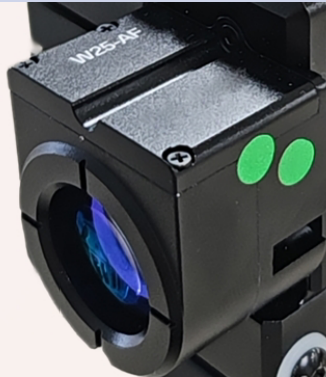

DR-L-W25AF	20	0.2~10	0.2~10	-10~+20	Medium and long distance use, diffuse reflector receiving angle is ±10°

¹ VibroMicro Sputnik, Apollo, Shenzhou can match all lenses except DR-L-W25AF.
DR-L-W25AF is only for VibroMicro Mars with automatic focus.
² The images shown are for display purposes only. Please contact us to request detailed or specific images.


    Power Supply

        Power Supply

        A-PPS-06
Plug-in power supply
        12 V AC/DC plug-in power supply, included with the VibroMicro delivery

        A-MPS-006
Mobile power supply

          High-performance, lightweight lithium-polymer rechargeable battery (A-MPS-PB1) for mobile use. Includes:
          Battery charger with adapter plates (EU, UK, US, AU)
2 m power supply cable (A-MPS-C06)
Waterproof bag (A-MPS-BAG) for tripod attachment


    Cables

        Cables

        A-PEC-0006
Power Ethernet cable (3 m)

          Cable for power and digital data transfer between VibroMicro and computer.

          Standard length 3 m. Included in the VibroMicro delivery package.

        A-BCB-0006
BNC analog signal output cable (1 m)

          MAM-BNCM-3M harness. SMA(m) straight to BNC(m) straight connector, 50Ω.

          Standard length 3 m. Included in the VibroMicro delivery package.

        A-BMC-0006
BNC mobile power cable (1.5 m)

          BNC mobile power cable, DC5.5mm to USB connector. It can replace the plug-in power supply on the Power/Ethernet cable and work after being connected to the USB interface of mobile power supply. Included in the VibroMicro delivery package.

Tripods
Tripods

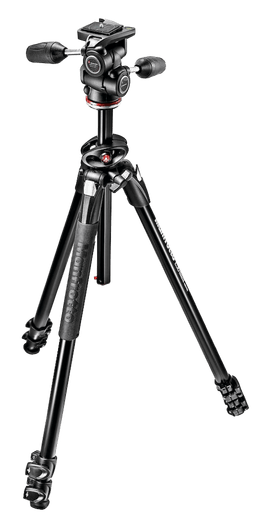

VIB-A-T00X Tripod-L (Optional)	Manfrotto 290 DUAL Kit, Alu 3 sec. tripod w/ 90°column and 3W head. 90° column system lets to shoot from new perspectives. 4 leg angles positions. New rubber legwarmer to increase the grip. New 804 3 Way head ideal for precise framing on all 3frictioned axes. The new 290 Dual is a combination of sturdiness and innovative high-end technical features. It is the ideal solution to enable hobbyist photographers to get extremely creative on their shoots. Top 3/8-inch screw design.

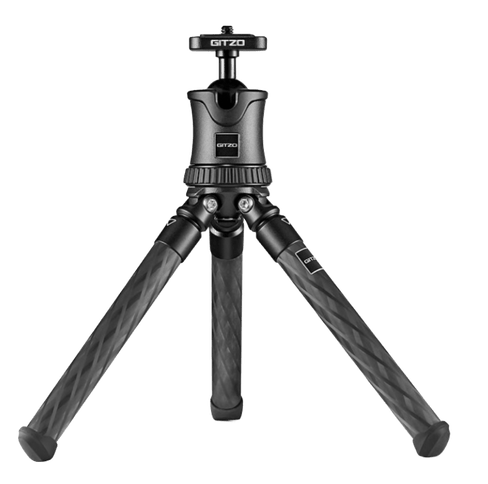

VIB-A-T00X Tripod-S (Optional)	Gitzo Mini Traveler provides convenience and functionality during every outdoor photographic project. Thanks to its state-of-the-art carbon exact tubes and aluminium head, it weighs only 265g (117g legs only). Top 1/4-inch screw design

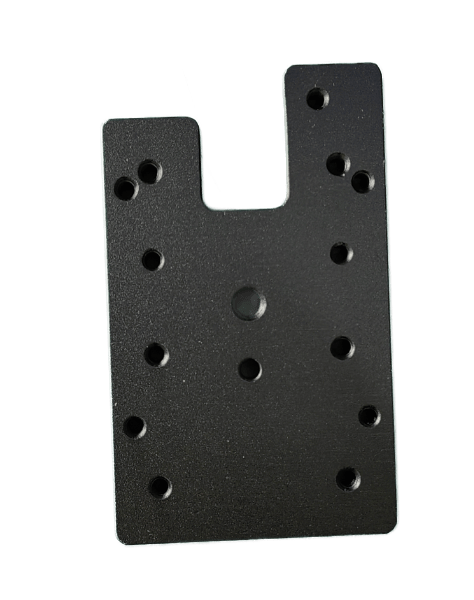

VIB-A-T00X Tripod-Plate	Tripod adaptor board, sandblasted (120 mesh), oxidised black finish.

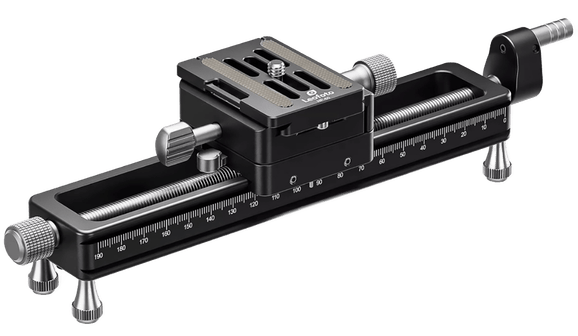

VIB-A-T00X Micro Focusing Rail (Optional)	Panoramic clamp + 20cm micro focusing rail.360° rotating clamp for fine micro-adjustment. Rail travel range: increased to 190mm (total length 200mm). Dual-sided clear scale for precise positioning and improved efficiency. Dual-sided 190mm Arca- Swiss standard dovetail design – can be mounted directly onto a tripod head. Two rails can be stacked for dual-axis adjustment, enabling both forward/backward and left/right micro movements. Universal 1/4" and 3/8" threaded sockets.

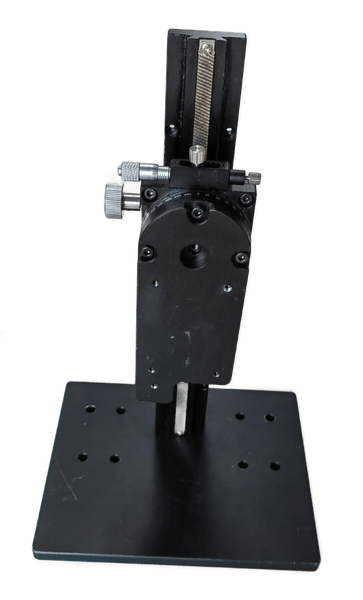

VIB-A-B00X Bracket (Optional)	Laboratory support bracket. Adjustable in X and Z axes, with rotational angle adjustment.

Transportation case
Transportation case

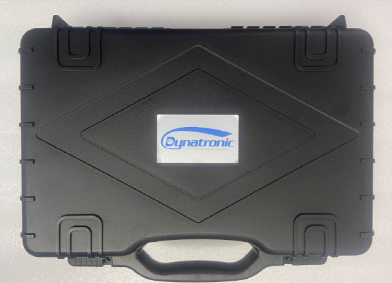

VIB-A-CAS06 Transport case (VibroMicro VM-S-100)	Robust case for VibroMicro. Included with sensor. Provides space for: VibroMicro sensor Plug-in power supply Optional accessories (e.g. mobile power supply)

Others
Others

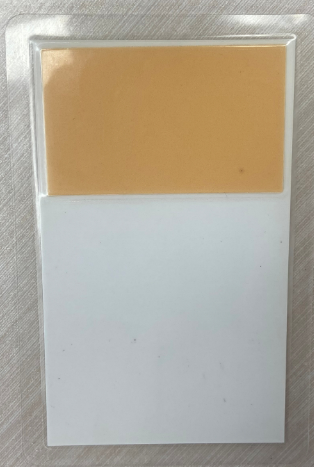

VIB-A-VRC Infrared Detection Card	Infrared detection card, realistic wavelength 700 ~ 2000nm, dispay threshold 0.1 mw, luminous area 55*35 mm. Included in scope of delivery of VibroMicro.
VIB-A-VRT Reflective Tape	Reflective tape uses a highly reflective material that improves detection of any interface. Not easy to fall off. Waterproof, dust-proof, and sunlight-resistant. Easy to cut it to any size you need. Included in scope of delivery of VibroMicro.
